  • Flood Gate

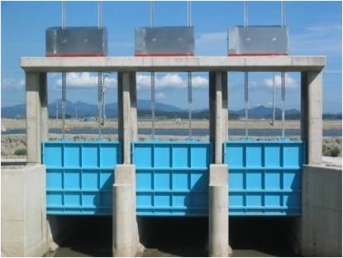

Slide Gate
When the sluice main body becomes larger, the frictional force increases when opening and closing the sluice gate. To reduce friction, the wedge-type slide gate is a water gate equipped with rollers and wedges on both sides of the driving surface of the door and the door frame.
  • With application of wedge in addition to main rollers on both tracks of guide frame, Hasuh Slide Gate reduces the friction force and increases water seal.
  • The sealing rubber will be provided to be replaced easily for maintenance of gate.
  • To provide gate design that fulfills the Purchaser's requirements in consideration of total hydraulic head, lifting capacity and corrosion.
H M G - 2 0 2 0 S
HMG = Hasuh Middle Size Gate
BOX SIZE [B(10cm) x H(10cm)]
111, 1212, 1313, 1414, 1515, 1616, 1717, 1818, 1919, 2020,
2121, 2222, 2323, 2424, 2525, 2626, 2727, 2828, 2929, 3030
Material S = STS304, C = SS400
