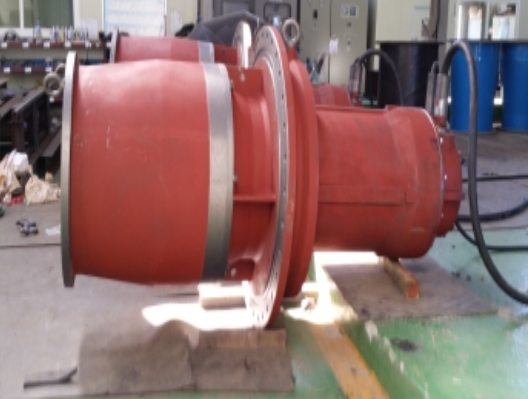

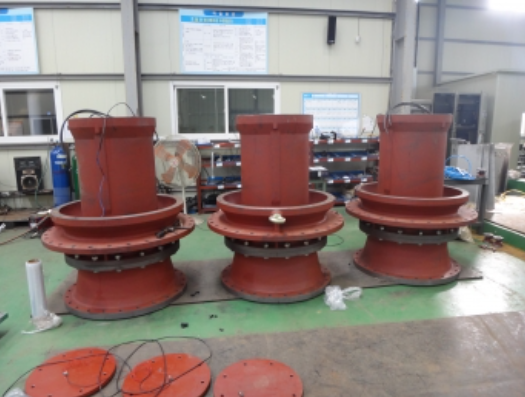

- Mixed Pump
-
1. Direct connection type, simple structure, high efficiency
2. Pump station construction cost and equipment cost reduction
3. Automatic detachable device
4. Submersible pump with foreign substance cutting and crushing function (patent registered product)
5. Designated as an excellent trademark for procurement of underwater pumps (No. 2016007-11).
- Poles : 6~28
- Insulation Class : H/F
- Phase, Voltage : 3 Phase 50/60Hz, 200~6600v
- Impeller material : Stainless, Aluminium and Bronze
- Output : 11~1200kw
- Flooding Area
- Industrial water and water supply
- Agricultural irrigation accommodation
- For taking coolant from power plant
구경 (mm) | 형식 | 출력 (kW) | 양정 (m) | 유량 (㎥/min) | 극수 (P) |
250 | HPM-250A-170-6P HPM-250B-200-4P HPM-250C-250-4P HPM-250D-320-4P | 17 20 25 32 | 8 10 12.5 16 | 8.0 8.0 8.0 8.0 | 6 4 4 4 |
300 | HPM-300A-250-6P HPM-300B-300-6P HPM-300C-390-6P HPM-300D-500-4P | 25 30 39 50 | 8 10 12.5 16 | 12.5 12.5 12.5 12.5 | 6 6 6 4 |
400 | HPM-400A-390-8P HPM-400B-500-8P HPM-400C-600-6P HPM-400D-800-6P | 39 50 60 80 | 8 10 12.5 16 | 20 20 20 20 | 8 8 6 6 |
500 | HPM-500A-600-10P HPM-500B-750-8P HPM-500C-950-8P HPM-500D-1200-6P | 60 75 95 120 | 8 10 12.5 16 | 31.5 31.5 31.5 31.5 | 10 8 8 6 |
600 | HPM-600A-850-12P HPM-600B-1100-10P HPM-600C-1320-8P HPM-600D-1700-8P | 85 110 132 170 | 8 10 12.5 16 | 45 45 45 45 | 12 10 8 8 |
700 | HPM-700A-1200-14P HPM-700B-1500-12P HPM-700C-1900-10P HPM-700D-2400-8P | 120 150 190 240 | 8 10 12.5 16 | 63 63 63 63 | 14 12 10 8 |
800 | HPM-800A-1500-16P HPM-800B-1900-14P HPM-800C-2350-12P HPM-800D-3000-10P | 150 190 235 300 | 8 10 12.5 16 | 80 80 80 80 | 16 14 12 10 |
900 | HPM-900A-1900-16P HPM-900B-2350-14P HPM-900C-2900-12P HPM-900D-3800-10P | 190 235 290 380 | 8 10 12.5 16 | 100 100 100 100 | 16 14 12 10 |
1000 | HPM-1000A-2300-18P HPM-1000B-2900-16P HPM-1000C-3600-14P HPM-1000D-4600-12P | 230 290 360 460 | 8 10 12.5 16 | 125 125 125 125 | 18 16 14 12 |
1100 | HPM-1100A-2750-20P HPM-1100B-3450-18P HPM-1100C-4300-14P | 275 345 430 | 8 10 12.5 | 150 150 150 | 20 18 14 |
1200 | HPM-1200A-3250-20P HPM-1200B-4100-18P HPM-1200C-5100-16P | 325 410 510 | 8 10 12.5 | 180 180 180 | 20 18 16 |
1350 | HPM-1350A-3800-24P HPM-1350B-4750-20P | 380 475 | 8 10 | 210 210 | 24 20 |
1500 | HPM-1500A-4550-24P | 455 | 8 | 250 | 24 |
* 전력(Power source) : 3Phase - 50/60Hz - 200/220/380/400/440/460/480/660/3300/6600V
* 형식표시 : HPM - 250A -170 - 6P (Hasuh Pump Mixed - 구경 250mm - 출력 170kw - 극수 6pole)
