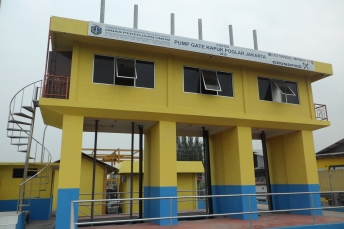

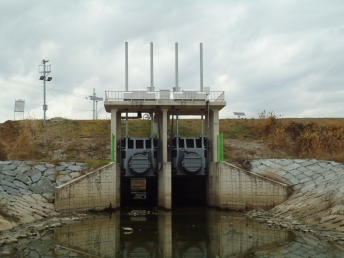

Pump Gate®
Hasuh Pump Gate® system is a new technology for drainage facility that integrates pump and gate into one system. It can be set up using existing water channel. As pump is directly mounted on gate leaf, Pump Gate® performs flood gate and pump simultaneously. It is no longer necessary to have a land for a reservoir and regular drainage pump system, if Hasuh Pump Gate® (Patent, KR) is applied properly.
  • No sump pit and pump station are required.
  • No land for sump and pump station are required.
  • As pump is integrally equipped with gate, maintenance of Gate Pump® is
    very simple and easy.
  • As no pump station is required, the structural work will be minimal.
  • As construction of Pump Gate® can be done in a short period time,
    construction of Pump Gate® can be done very short.
  • To compare the cost of ordinary pump station with Pump Gate®,
    great reduction (about 30%~50%) can be achieved.
  • 1) Client Name:
  • 2) Project Name:
  • 3) Contact Point: Name-In-Charge, Tel, e-mail
  • 4) Discharge Quantity: Q = t/min, t/sec
  • 5) Power Available: Voltage, Hz
  • 6) Material: Please specify gate to be exposed to Brine Water or not.
  • 7) Inside Water: LWL, HWL
  • 8) Outside Water: LWL, HWL
  • 9) Intake Channel: Width x Height, Sill Elevation
1. Vertical Shaft Pump (Head 7m ~ 13m)
H P G - 2 C V - 900 S
HPG = Hasuh Pump Gate
Nos of Pump to be mounted on each Gate = 1, 2, 3 unit
Direction of Water Pressure: C= Counter(-), P= Positive(+)
Pump Shaft Mounting Direction: V= Vertical
Pump Diameter = 300, 400, 500, 600, 700, 800, 900mm
Gate Materials: S= STS304, C= SS400 w/tar Epoxy Painting
2. Horiziontal Shaft Pump (Head upto 7m)
H P G - 2 C H - 900 S
HPG = Hasuh Pump Gate
Nos of Pump to be mounted on each Gate = 1, 2, 3 unit
Direction of Water Pressure: C= Counter(-), P= Positive(+)
Pump Shaft Mounting Direction: H= Horizontal
Pump Diameter = 300, 400, 500, 600, 700, 800, 900, 1000, 1200,1350, 1500mm
Gate Materials: S= STS304, C= SS400 w/Tar Epoxy Painting
