  • Products
  • Lifting Facilities

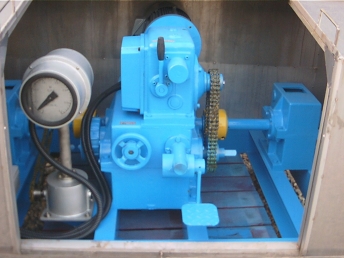

Pin Jack Hoist
In addition to the ordinary Pin Jack, Hasuh improved the supporting method of rotating shaft from bushing to ball bearing and lubricant method of gear from non-lubricant to submerged lubricant. This remarkable improvement leads us to reliable and smooth operation as well as maintenance.
  • Torque control apparatus and operating method for hoist for flood gate : Patent no. 10-0521250, KR
  • In addition to the ordinary Pin Jack, Hasuh improved the supporting
    method of rotating shaft from bushing to ball bearing and lubricant
    method of gear from non-lubricant to submerged lubricant.
    This remarkable improvement leads us to reliable and smooth operation as
    well as maintenance.
  • Torque controlled Pin Jack Hoist is able to prevent from overload and
    operable at remote are patent registered (no. 10-0521250, KR). double
    brake system and gate position indicator(GPI) also improve proper
    operation.
  • The lifting capacity is 5ton ~ 15ton and it is operated by manually and
    electrically.
H P J - 1 0 D E
HPJ = Hasuh Pin Jack
lifting capacity = 5, 7.5, 10, 15 Ton
Number of racks D = Double, S = Single
Operating system E = Electrical, M = Manual
